| TFT Characteristics |
| Pixel Number |
800 x 600 |
| Pixel Pitch(R&B) |
0.213 (H) x 0.213 (V) mm |
| Contrast Ratio |
250 : 1(typ.) |
| Light Intensity |
520 (typ.) |
| Viewable Angle |
100 (H); 90 (V) |
| Active Display Area |
170.4 (H) x 127.8 (V) |
| Max Colors |
262,144 (6bits/color) |

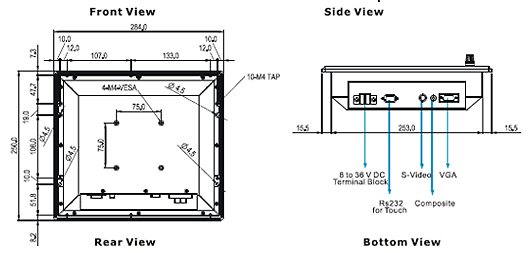

| Input Signals |
| RGB Signal |
D-SUB 15P connector(female) |
| Composite Video |
RCA phono plug |
| S-Video Signal |
S-Video (SVHS) plug |
| DC Power Signal |
Screw terminal block |
| Touch Screen (Optional) |
D-SUB 9P connector (female) |
| User Controls |
Power On/Off via front button
VR Brightness Knob Control
Power Mode Status LED
Power Mode Status LED |
| Power Specification |
| Power Supply Options |
8 to 36 V DC to DC power supply with terminal block |
| Power Consumption |
15 W typical, normal operation |
| Environmental Considerations |
| Operating Temperature |
-10 to 55 deg.C (-20 to 60 deg.C for optional heating) |
| Humidity |
5% to 95% (non condensing) |
| Anti-Vibration |
5Hz~500Hz / 1Grms/3 Axis |
| Anti-Shock |
15G, 11ms duration |
| Available Options |

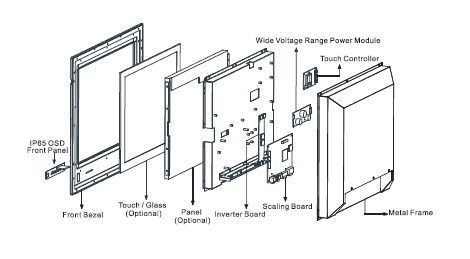

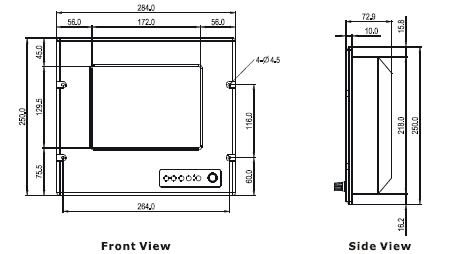

| Mechanical Options |
IP65, Panel Mount, Open Frame |
| Touch Screen Options |
5 Wire Resistive |
| AR Safety Glass Option |
5mm Anti-reflective protection glass |
| Input / Output Connectors |
| Ethernet LAN |
1 x RJ45-10/100 Mbps |
| Keyboard / Mouse |
1 x PS/2 |
| COM |
2 x RS232, 1 x RS232/422/485* |
| USB |
2 x USB Type-A receptable |
| RGB Out |
1 x VGA 15P DSUB (female) |
| Compact Flash Socket |
1 x Type I/II CF Socket (Not support Pull and Plug.) |
| Power Input |
1 x DC Terninal block |
| Certification and Approvals |
| Certification |
Certification |
| Approvals |
DNV Type Approval (Pending) |
| Outdoor Readability |
| Ambient light(nit) |
10,000 |
30,000 |
80,000 |
| Brightness gain (nit) |
432.7 |
620 |
1,180 |
| Reflectance(net)(%) |
1.20% |
1.15% |
1.16% |
| Note |
*Equivalent brightness under sunlight. |
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements
*If you use SBC on-board RS485, you need to set appropriate state of RTS line before sending/receiving data in your software program.We offer additional board that can perform auto-direction hardware function. |
|
