Rugged Transflective Sun Light Readable Marine LCD Display with Elo
SAW TouchScreen, Marine monitor Front Panel Sealed to Ruggedized
IP65 Proof / Rear IP54, 0 to +55 Deg Operational Temperature

Dimming 0~100%

Sunlight Readable

PIP

IP65 Proof

8- to36V DC input

Anti-Corrosion (Option)

OSD from panel

AR Safety Glass (option)

Touch Screen

Features:
Hyper Dimming	:Dimming knob control backlight brightness from nearly 0% to 100%
Sunlight Readable	Transflective film technology enhance visibility
Ruggedized IP65 Proof	Panel (flush) mount IP65 aluminum housing with powder coating design (IP54 rear)
Wide Voltage Range Input	8 to 36V DC to DC power input acceptable(AC power for option)
Touchscreen	:High quality touchscreen / AR protection glass for option
Multiscan Function	PIP(picture in picture) function and multi-video inputs
IP65 OSD front panel Design	:Ease of use front panel OSD control
Anti-shock and Vibration	:Enhanced shock and vibration resistance

Specifications

TFT Characteristics
Pixel Number	1024x768
Pixel Pitch(R&B)	0.264 (H) x 0.264 (V)
Contrast Ratio	500:1 (typ.)
Light Intensity	475 (typ.)
Viewable Angle	-70~70 (H); -60~70 (V)
Active Display Area	337.920 (H) x 270.336 (V)
Max Colors	16.7M (8bits/color)

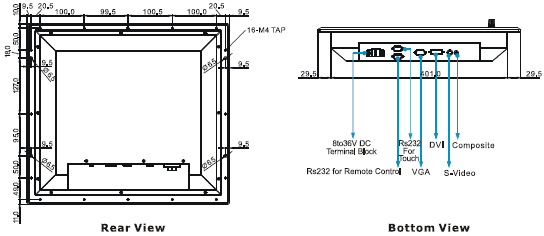

Input Signals
RGB Signal	D-SUB 15P connector(female)
Composite Video	RCA phono plug
S-Video Signal	S-Video (SVHS) plug
DVI-D Signal	DVI-D input 24pin connector
DC Power Signal	Screw terminal block
AC Power Signal (Optional)	Std IEC Inlet
Touch Screen (Optional)	D-SUB 9P connector (female)
Remote via RS-232 (Optional)	D-SUB 9P connector (female)
User Controls
Power On/Off via front button VR Brightness Knob Control On Screen Display control(OSD) OSD Remote Control via RS-232 Power Mode Status LED
Power Specification
Power Supply Options	8 to 36 V DC to DC power supply with terminal block. 90 to 265 V AC (optional)
Power Consumption	40 W typical, normal operation
Environmental Considerations
Operating Temperature	-10 deg.C to 55 deg.C
Humidity	5% to 95% (non condensing)
Anti-Vibration	5Hz~500Hz / 1Grms/3 Axis
Anti-Shock	15G, 11ms duration
Available Options

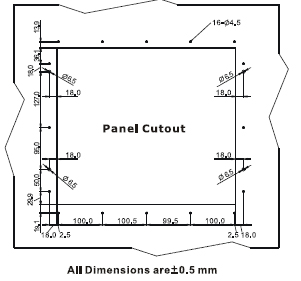

Mechanical Options	Panel (Flush) mount with IP65 (SAW touch for IP54)
Touch Screen Options	SAW, 5 Wire Resistive
AR Safety Glass Option	3mm Anti-reflective protection glass
VESA Mounting	NO(VESA is only by special request)
Certification and Approvals
Certification	CE, FCC
Approvals	DNV Type Approval (Pending)
Outdoor Readability
Ambient light(nit) 10,000 30,000 80,000 Brightness gain (nit) 490 630 900 Reflectance(net)(%) 0.83% 0.70% 0.45% Note *Equivalent brightness under sunlight. *Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements

i-Tech Standard Warranty
* Free 1-year warranty covers parts and workmanship
* Telephone and email technical support are available from 9:00 am to 5:00 pm PST, Monday through Friday
* Standard Warranty coverage begins on the date of purchase
