 | This is discontinuing product. Please call 1-888-483-2418 for more detail of the replacement products.
Features and Benefits

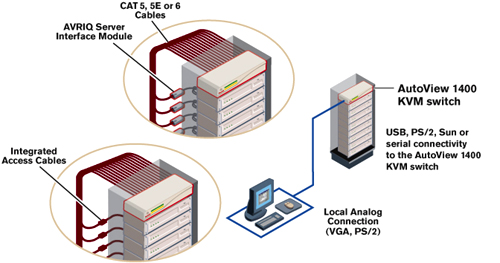

Avocent ?? AutoView 1400 8-port, single user KVM switch provides PS/2, USB, Sun and serial connectivity, advanced cabling options, flexible access and a next-generation user interface in one switching solution.
The AutoView 1400 switch server interface modules and integrated access cables automatically assign and retain unique server names, which simplifies installation and eases re-configuration. With flexible cable options and advanced on-screen management, the AutoView 1400 switching system is an ideal solution for today's small office and mid-sized business networking environments.
- Integrated access cables offer PS/2 or USB keyboard, video and mouse connectivity in one, slim CAT 5 cable, which reduces cable bulk, saves time and reduces cost.
- Server interface modules support all major server platforms and VT100 serial-based devices.
- Provides access to eight PCs and network devices.
- Advanced on-screen management provides easy configuration and server selection.
- BIOS-level access ensures connection to the attached servers regardless of the health or type of operating system.
- A space-saving 1U rack mount design.
- Flash-upgrades firmware for fast and easy updates for appliances and server interface modules.
- Keep Alive power safeguard allows attached servers to continue network functions in the event of power failure to the AutoView switch.
Specifications
| Mechanical |
Height
|
1.75 in.
(4.45 cm) |
|
Width
|
17.00 in.
(43.18 cm) |
|
Depth
|
11.00 in.
(27.94 cm) |
|
Weight
|
8 lbs. (3.6
kg) |
| Environmental |
Operating Temp
|
50
to 122°F (10
to 50°C) |
|
Storage Temp
|
-4 to 140°F
(-20 to 60°C) |
| Power |
Operating Voltage
|
100 - 240
VAC Autosensing |
|
Power Frequency
|
50/60 Hz |
|
Input
|
40
W Maximum |
| Supported
Hardware |
Computers
|
BM PC/AT, PC
and 100% compatibles |
|
Monitors
|
XGA, XGA-II
with adapter, 1600 x 1280 @ 75 Hz resolution |
|
Peripherals
|
PC keyboard,
PC mouse, Microsoft Explorer mouse, Microsoft IntelliMouse family, IBM
Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel,
Logitech Marble FX and Kensington 4-button mouse |
| Standards |
Approved Agency
|
UL FCC Class
A, cUL, ICES Class A, CE, N, GS, IRAM, GOST, VCCI, Class A, MIC Class A,
C-Tick |
| Order Details |
Part Number |
| 1 local
users, 8 system switch, with GUI and rack mount kit |
AV1400-001 |
| 2 local
users, 8 system switch, with GUI and rack mount kit |
AV1500-001 |
| 2 local
users, 16 system switch, with GUI and rack mount kit |
AV2000-AM |
| AutoView
2000 Rack Mount Kit |
RMK-38 |
| Modules |
Part Number |
| Server
interface module for VGA PS2 keyboard PS2 mouse |
AVRIQ-PS2 |
| Server
interface module for serial-based devices (requires UPD-AM
power supply) |
AVRIQ-SRL |
| Server
interface module for VGA USB keyboard/mouse USB mouse |
AVRIQ-USB |
| Sever
interface module for VGA or 13W3, Sun
keyboard/mouse |
AVRIQ-VSN |
| Cables |
Part Number |
| 10ft PS2
CAT 5 integrated access cable |
PS2IAC-10 |
| 15ft PS2
CAT 5 integrated access cable |
PS2IAC-15 |
| 7ft PS2 CAT
5 integrated access cable |
PS2IAC-7 |
| 10ft USB
CAT 5 integrated access cable |
USBIAC-10 |
| 15ft USB
CAT 5 integrated access cable |
USBIAC-15 |
| 7ft USB CAT
5 integrated access cable |
USBIAC-7 |
This product has a limited warranty of:
2 years for parts and 2 years for labor.
This warranty is provided by Avocent. www.avocent.com
Support Phone Number:
888 793-8763
Warranty Phone Number:
888 793-8760
